How to demarcate intersegmental plane with resected-segments inflation method using the slip knot technique in thoracoscopic anatomic segmentectomy

Introduction

Thoracoscopic anatomic segmentectomy is challenging because intersegmental demarcation line on the surface of the visceral pleura could not be found at thoracoscopic findings. Furthermore, in the case of pulmonary malignancies, it should be needed to gain a sufficient surgical margin from the tumor. To identify the intersegmental demarcation line is a vital point to perform thoracoscopic segmentectomy.

The conventional ventilation recruitment method for identifying the intersegmental plane involves inducing collapse of the resected segment and inflation of the reserved segment (1-3). The problem of this method is that the inflated segments become an obstacle to perform thoracoscopic surgery in narrow intrathoracic space. Additionally, because of the presence of three types of collateral ventilation (or collateral air drifts) taking place via the pores of Kohn, the canals of Lambert, and direct airway anastomosis (4), when the reserved segment inflation method is applied, the intersegmental plane is occasionally unclear. The resected segments inflation (RSI) method is reported to have benefits in terms of obtaining a sufficient working space and surgical margin from the tumor (Figure 1) (5,6).

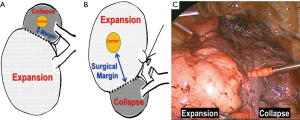

Figure 1 The schema of Inflation-deflation line. (A) Conventional method visualizing the inflation-deflation line has shorter distance from tumor to the intersegmental plane than (B) resected segments inflation (RSI) method. The segment planned for resection is inflated and collapse is induced in the reserved segments, allowing visualizing the inflation-deflation line indicating intersegmental plane. The dotted line indicates the inflation-deflation line. (C) A case of right dorsal (S2) segmentectomy. Note that the dorsal segment remains inflated while the residual lung parenchyma of the apical and ventral segment (S1+3) is collapsed. The border line on visceral pleura indicates the inflation-deflation line.

RSI method

Air is sent to the objective segmental bronchus located at the center of the basic pulmonary structure. The affected segment is inflated and reserved segments are collapsed and an intersegmental plane could be identified. If this is visualized well, resection of intersegmental plane could be easily performed with the inflation-deflation line and the intersegmental pulmonary vein. The lung parenchyma that is undergoing dissection of the intersegmental plane shows changes of the color by containing the air, which serves as a landmark during dissection. This method is advantageous in that inflated segments enable identify the surgical margin from the tumor to the intersegmental plane in an air-filled condition (6).

Several methods for sending air to the resected segments have been reported. They include the jet ventilation method (7,8), and the butterfly needle method (9,10). The butterfly needle method involves the risk of an air embolism due to possible entry of air into the vein neighboring the bronchus (11,12). In this paper, we demonstrated that a new slip knot technique to make intersegmental demarcation line during segentectomy.

Slip knot technique

We have been using the RSI method to identify the intersegmental plane. In the past, bronchoscopy was used to send air to the objective bronchus. However, this technique is skillful and the inflated segments become an obstacle to perform a thoracoscopic procedure in narrow intrathoracic space. To resolve the problems, we developed the slip knot technique, and use this technique to perform thoracoscopic anatomic segmentectomy.

The modified Roeder knot is a method of ligation that is employed for the slip knot technique (13). A 3-0 or 4-0 polypropylene monofilament suture is passed through the segmental bronchus planned for resection, and a slip knot is formed outside the thorax. The knot is formed in the following way. A single knot is made and held by the middle finger. Wrap the end three or four times around the limbs of the loop of the suture being passed through the bronchus. The end of this suture is passed through the circle formed by the initially formed knot. The end of this suture is held and the proximal side of the knot is pulled to complete the slip knot. So that the slip knot can smoothly reach the bronchus when pulled, it is advisable to avoid excessive pulling, that is, to keep it slightly tightened.

Several types of slip knot are available, however our slip knot can be easily advanced to the bronchus just by pulling and ligate it. A characteristic of this technique is that because the knot can be advanced easily to the bronchus just by pulling, there is no excessive traction force applied to the target organ, and ligation of the bronchus is possible even if poor operative visibility. Making slip knot is presented in Figure 2.

Figure 2 How to make the slip knot. The slip knot is a modified Roeder knot customized for bronchial ligation. To make the knot, create a half hitch and hook this throw to the bronchus using the third finger of the left hand. Wrap the end three or four times around the limbs of the loop of the suture being passed through the bronchus. Bring the end back, hold this end between the thumb and third finger, and then pass through the loop that was made with the hitch. The knot is slightly tightened, and the long end of the monofilament suture is pulled so that the knot easily slips down to reach the operative field without requiring a knot-pusher (14). Available online: http://www.asvide.com/articles/1640

Thoracoscopic segmentectomy using the slip knot technique

Before surgery, three-dimensional computed tomography images are established (15). The simulation images are used to identify: (I) the segmental arterial branches; (II) the intersegmental veins to be preserved; and (III) the venous branches in the affected segment to be divided. These data are used to perform the surgical procedure while comparing and contrasting the simulation with the real-time conditions in the surgical field by rotating and resizing the 3-D images.

Surgery is performed under general anesthesia and one lung ventilation. The steps for anatomic segmentectomy are as follows: firstly, the pulmonary vein and artery of the segment planned for resection are dissected from the hilum in order to isolate the segmental bronchus located behind the pulmonary artery. The veins were detached from the hilum toward the peripheral side after deciding which intersegmental pulmonary veins were to be preserved and which were to be dissected on the basis of the simulation. Then we ligated and dissected the segmental artery and detached the segmental bronchus.

Secondly, a monofilament non-absorbable suture is passed through the segmental bronchus, and a slip-knot is made outside the thorax. The suture used to form the slip knot is pulled to advance the knot, but not tightening of the bronchus. At this stage, the bronchus has not yet been ligated, and thus ventilation is possible (Figure 3A). Thirdly, bilateral lung ventilation with pure oxygen is conducted. When the affected segment has been inflated sufficiently, the slip knot suture is pulled and the segmental bronchus is ligated (Figure 3B). Then, the lung is collapsed again, the affected segment is kept inflated and collapse is induced in the segments to be reserved, allowing visualization of the inflation-deflation line. The bronchus ligated with the slip knot is dissected by stapler, suture, or ligation, depending on the caliber and nature of the bronchus (16).

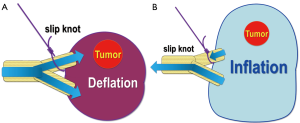

Figure 3 Resected segments inflation (RSI) method using the slip knot technique. (A) The suture used to form the slip knot outside thorax is pulled to advance the knot to a point just before ligation of the bronchus. Arrow indicates the direction of the ventilation; (B) both pulmonary segments are ventilated with pure oxygen, and the slip knot is fully pulled to ligate the bronchus with full expansion of the lung. The airflow from the affected segment is blocked by the slip knot ligation of the bronchus. Arrow indicates the direction of the ventilation.

In some cases, although it takes a time to get a lung collapse in the reserved segments, visualization can be completed during manipulation of the hilum. Fourthly, as inflation of the affected segment and collapse of the reserved segments could be found, resection of intersegmental plane could be easily performed with the inflation-deflation line and the intersegmental pulmonary vein.

In the resection of the lung parenchyma, we use electrocautery, an energy device, or stapler depend on the condition of emphysematous change of the lung. When dissection of about 1/3 from the hilum and the visceral pleura has been achieved along the inflation-deflation line and the intersegmental pulmonary vein serving as the landmark, respectively, a stapler is used to complete segmentectomy. The right apical (S1) segmentectomy is presented in Figure 4.

Figure 4 Video-assisted thoracic surgery (VATS) right S1 (apical) segmentectomy using slip knot technique. The surgical approach is 4 port-access. The right side is head direction, the left side is caudal direction. Pulmonary artery A1 is exposed and dissected, then cut. The targeted bronchus B1b and B1a is isolated and looped by 3-0 polypropylene monofilament suture. The slip knot is made outside the thorax moves toward, and bilateral ventilation starts. After the lung becomes expanded, the suture is pulled and ligates the bronchus. The affected segment (S1) remains expanded, while preserved segment (S2 and S3) becomes collapse. The inflation-deflation line appears. When dissection of about 1/3 from the hilum and the visceral pleura has been done with the inflation-deflation line and the intersegmental pulmonary vein (V1b, V2a) serving as the landmarks, respectively, a stapler is used to complete segmentectomy (17). Available online: http://www.asvide.com/articles/1641

Regarding with slip knot technique, it will take 1–2 minutes (bilateral ventilation with pure oxygen) plus about 7–10 minutes (to visualize the intersegmental plane). In the case of pulmonary emphysema and the secretion of air-way, it will take a much more to obtain intersegmental plane.

Segmentectomy with the slip knot technique is applicable to the small caliber bronchi. For this reason, it is also applicable to multiple segmentectomies and segmentectomy accompanied by subsegmentectomy. Guiding the bronchoscope into the 4^th or 5^th generated branched bronchus is sometimes difficult, but this can be done with the use of the slip knot technique. In practice, visualization of the inter-subsegmental plane of subsegments is easier after introduction of the slip knot technique, and subsegmentectomy has been performed more frequently than it was before we adopted this technique (18).

Pure oxygen is used for inflating again with the slip knot technique. This is because inflation of lung with pure oxygen leads to a nitrogen-free state in which oxygen is absorbed in the reserved segments supplied with the pulmonary artery and collapse is easier to induce (19). Pure oxygen is inhaled for about 1–2 minutes, until the expired oxygen concentration in the respirator begins to increase.

Comments

When pulmonary segmentectomy was performed with the slip knot technique, visualization of the inflation-deflation line was possible in most cases. However depiction of the inflation-deflation line was insufficient in some cases, such as emphysema and chronic bronchitis. In the latter cases, depiction of the inflation-deflation line is difficult when air is poorly sent from the segmental bronchus planned for resection. Problems encountered in cases of emphysema include: (I) inaccurate border due to communication with the resected segments arising from peripheral lung destruction; and (II) difficulty in inducing collapse due to air trapping.

Aside from the air-sending method for visualizing the intersegmental plane, other methods are available, including a method involving injection of indocyanine green (ICG) into the segmental bronchus planned for resection (20,21) and a method in which the intersegmental line is observed under an infrared thoracoscope after intravenous injection of ICG following pulmonary artery blocking (22,23). The method involving ICG injection into the bronchus involves the risk for failure to achieve uniform dispersion of the dye in subsegments. Intravascular injection of ICG might be promising, however it involves problems of its cost and duration of visualization as it becomes invisible in a quite short time.

Segmentectomy with the slip knot technique is applicable if the segmental bronchus planned for resection can be exposed. The demarcation line does not disappear once it becomes visible. Its greatest advantage is that it does not require a jet ventilation facility or an anesthesiology unit equipped with individuals with sufficient bronchoscopy skills or bronchoscopists, allowing depiction of the intersegmental plane only by the surgeon’s manipulation within the surgical field. Use of the slip knot technique is expected to allow segmentectomy to be performed anywhere and anytime needed, with no costs required for new equipment.

Acknowledgements

The research reported in this publication was not supported by any external funding or grant.

Footnote

Conflicts of Interest: The authors have no conflicts of interest to declare.
