Subxiphoid uniportal video-assisted bilateral surgery: right upper lobectomy and left upper wedge resection S3

Introduction

Recently, minimally invasive surgery has revolutionized conventional thoracic surgery, as it changes completely all of it paradigms. It is a less aggressive procedure that also comes with better outcomes, such as the case of the uniportal (1) and subxiphoid approach (2).

The traditional approach for bilateral lesions usually involves bilateral approaches, either by classical thoracotomy or video-assisted thoracoscopic surgery (VATS) surgery, and often at two different times (3). We currently have one of the most innovative techniques, as it is the subxiphoid one, that led us a bilateral access to treat different lesions located one in both hemithorax, with a single incision. In our case we treat synchronous pathologies and perform a right superior lobectomy and a wedge resection (4) of a nodule of benign characteristics. They were located at the right upper lobe (5,6) and left upper lobe, respectively. Taking advantage of the visit Dr. Gonzalez Rivas at the Master Class in Málaga (Figure 1), the first subxiphoid bilateral lobar and segmental resection of Spain and Europe was performed. It is a very infrequent procedure, rarely reported in literature.

Figure 1 Dr. Gonzalez Rivas with Department of Thoracic Surgery team at the Master Class in Málaga, Spain.

Clinical case

A 53-year-old male with heavy smoking history, in CT scan that showed two lesions located the right upper lobe and left upper lobe (Figure 2). PET-CT showed a 26-mm nodule in the posterior segment of the right upper lung with high activity (SUVmax: 13.6) that suggested a malignancy. It also reveals a 16-mm node in the anterior segment (S3) of the left upper lobe with low activity (SUVmax: 1.6), that suggested very low malignant probabilities. Pulmonary function tests were normal.

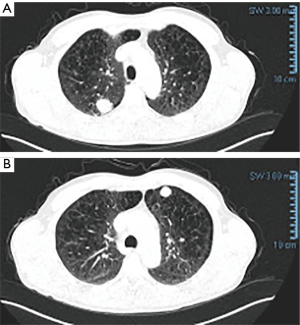

Figure 2 CT scan showing two lesions located the right upper lobe (A) and left upper lobe S3 (B).

The patient was proposed for uniportal VATS subxiphoid right upper lobectomy and wedge resection S3 of the left upper lobe.

Surgical technique (Figure 3)

Figure 3 Subxiphoid uniportal video-assisted thoracoscopic, two lesions, right upper lobe and left upper lobe (7). Available online: http://www.asvide.com/articles/1890

The surgical procedure was performed under general anesthesia, and double lumen endotracheal intubation. The patient was placed in the right semi-supine position with 45 degrees of inclination (Figure 4). A 3.5-cm-long longitudinal skin incision below the xiphoid process, the xiphoid process was partially resected, with blunt dissection of mediastinal fat. A wound protector improved the exposure and allowed bimanual instrumentation through the subxiphoid incision (Figure 5).

Figure 4 The patient in lateral position with 45 degrees of inclination.

Figure 5 A wound protector, bimanual instrumentation through the subxiphoid incision.

A 30-degree 10-mm thoracoscope combined with several specific longer VATS instruments was used (Figure 6), all of them through the same subxiphoid incision. The cavity was explored, finding a lesion at the right upper lobe. Mediastinal and hilar adhesions were released with harmonic scalpel. Then, mediastinal artery, superior pulmonary vein, recurrent artery, posterior ascending artery, superior lobe bronchus and the major fissure, were also released sequentially with specific uniportal subxiphoid instruments and endo-stapler. Removal of the piece by endo-bag G4-G7-G8 systematic lymphadenectomy and pulmonary ligament release was performed.

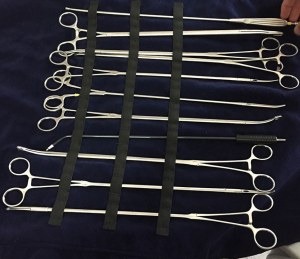

Figure 6 Specific longer subxiphoid VATS instruments. VATS, video-assisted thoracoscopic surgery.

Immediately after, left hemithorax approach was performed though the same subxiphoid incision. It started with left mediastinal pleura and thymus fat dissection. Mediastinal adhesion was released by harmonic scalpel, and the cavity was explored lesion was located. Wedge resection S3 left upper lobe with large margins of resection was made by endo stapler. It was sent to the pathologist who confirmed the presence of a hamartoma. Argile 24F type thoracic drainage system was placed in the right hemithorax and Blake 19F in the left (Figure 7). The stance at the hospital lasted three days followed by success hospital discharge. Pathology revealed a large-cell neuroendocrine carcinoma in the right lung and chondroid hamartoma in the left one.

Figure 7 Argile 24F type thoracic drainage system was placed in the right hemithorax and Blake 19F in the left.

Discussion

Traditional surgical approaches do not offer the same success rate in all different scenarios, we may need to consider combining selective approaches in order to improve the surgical outcomes.

In our specific case, the subxiphoid approach allowed us to access both cavities with just one incision and access both pulmonary lesions at the same setting (8). In addition, it provided us the benefits of a minimally invasive surgery, decreasing postoperative pain and the morbidity.

This technique requires specifics angulated tools with higher dimensions than conventional VATS (9), but they can also allow an ergonomic way to approach thoracic structures. Experience in minimal invasive uniportal surgery is required to perform it successfully (9).

In this case, it was possible to approach both hemithorax without changing patient’s position. A minor surgical table inclination was only required in order to improve the pulmonary structures manipulation. Despite the fact that subxiphoid access is quite limited for posterior structures, it does not prevent from performing an adequate lymphadenectomy.

In conclusion, the subxiphoid uniportal approach is an feasible surgical technique that allows bilateral hemithorax access when it usually requires another procedure and surely, a second-time surgery, increasing postoperative morbidity.

Acknowledgements

None.

Footnote

Conflicts of Interest: The authors have no conflicts of interest to declare.

References

1. Gonzalez D, Paradela M, Garcia J, et al. Single-port video-assisted thoracoscopic lobectomy. Interact Cardiovasc Thorac Surg 2011;12:514-5. [Crossref] [PubMed]
2. Liu CC, Wang BY, Shih CS, et al. Subxiphoid single-incision thoracoscopic left upper lobectomy. J Thorac Cardiovasc Surg 2014;148:3250-1. [Crossref] [PubMed]
3. Atkins BZ, Harpole DH Jr, Mangum JH, et al. Pulmonary segmentectomy by thoracotomy or thoracoscopy: reduced hospital length of stay with a minimally-invasive approach. Ann Thorac Surg 2007;84:1107-12; discussion 1112-3. [Crossref] [PubMed]
4. Rocco G, Martin-Ucar A, Passera E. Uniportal VATS wedge pulmonary resections. Ann Thorac Surg 2004;77:726-8. [Crossref] [PubMed]
5. Wang BY, Liu CY, Hsu PK, et al. Single-incision versus multiple-incision thoracoscopic lobectomy and segmentectomy: a propensity-matched analysis. Ann Surg 2015;261:793-9. [Crossref] [PubMed]
6. Suda T, Ashikari S, Tochii S, et al. Single-incision subxiphoid approach for bilateral metastasectomy. Ann Thorac Surg 2014;97:718-9. [Crossref] [PubMed]
7. Giraldo Ospina CF, Mongil Poce R, Arrabal Sánchez R, et al. Subxiphoid uniportal video-assisted thoracoscopic, two lesions, right upper lobe and left upper lobe. Asvide 2017;4:568. Available online: http://www.asvide.com/articles/1890
8. Taniguchi Y, Suzuki Y, Suda T, et al. Video-assisted thoracoscopic bilateral lung metastasectomy with a subxiphoid access port. J Thorac Cardiovasc Surg 2005;130:916-7. [Crossref] [PubMed]
9. Gonzalez-Rivas D, Yang Y, Lei J, et al. Subxiphoid uniportal video-assisted thoracoscopic middle lobectomy and anterior anatomic segmentectomy (S3). J Thorac Dis 2016;8:540-3. [Crossref] [PubMed]
