Current status and issues of uniportal video-assisted thoracic surgery in Japan

Introduction

Uniportal video-assisted thoracic surgery (U-VATS) has become prevalent among thoracic surgeons in a part of countries including Japan (1-3). U-VATS and robotic-assisted thoracoscopic surgery (RATS) are two types of minimally invasive surgical techniques. Uniportal procedures are feasible although they can be technically challenging. RATS is superior to U-VATS in terms of the ability to perform procedures that require fine motor skills and to maintain wide visual fields during the procedure; however, it is not as feasible and more costly compared with U-VATS. U-VATS is also considered safer as it is easier than RATS to be converted to thoracotomy when needed. Thus, suitable procedures should be selected to meet the needs of specific cases. In the present study, we present representative videos of the procedure and review the treatment outcomes of U-VATS for anatomical lung resection that were performed at our institution for patients with early-stage lung cancer.

Methods

A retrospective review of a prospectively maintained database identified 212 patients with clinical stage I non-small-cell lung cancer who underwent curative thoracoscopic surgery at Nippon Medical Chiba Hokusoh Hospital between June 2012 and March 2019. One hundred and fifty-two of lobectomies and 33 of segmentectomies were performed for the patients with clinical stage I lung cancer by the same thoracic surgeon. Our indications for lung segmentectomy included peripheral clinical T1aN0M0 non-small lung cancer with a tumor less than 2 cm in diameter and a ground-glass lesion showing a solid part of less than 50% (4). In identifying the intersegmental lines, inflate-deflate method using 6- or 8-Fr pediatric-size bladder catheter via peripheral bronchus was provided. The representative procedures of uniportal segmentectomy (right anterior segmentectomy) are shown in Video 1. As for segmentectomies, simple segmentectomies were performed. In U-VATS, a 3.5–5.0 cm incision was made on the anterior to middle axillary line, followed by the attachment of a Wrap Protector (Hakko Inc., Japan). Protective procedures to the intercostal nerves were provided by the surgeon and assistants. The procedure was atraumatically performed as much as possible in order to prevent contact between the thoracoscope and forceps and intercostal nerves. The thoracoscope was mostly handled at an angle of more than 45 degrees from the chest wall. Surgery was performed using a 10- or 5-mm 30-degree oblique-viewing thoracoscope and facing/inverted dual-monitors without any specific device. The Wrap Protector mini-mini was routinely used to open incisions, and a small rib retractor was not used. The energy device, HARMONIC scalpel (Ethicon, USA) was used for mediastinal lymph node (LN) dissection. Various surgical factors (operative outcomes), the incidence of complications, postoperative complications (prolonged air leak, atelectasis, empyema, wound infection), and 60-day mortality were evaluated. Postoperative wound pain was monitored using the numeric rating scale (NRS). NRS was evaluated on postoperative day 30. Prognostic evaluation such as progression-free survival (PFS) rate and overall survival (OS) rate using Kaplan-Meier analysis in both groups was carried out.

The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the institutional review board and the committee of Nippon Medical Chiba Hokusoh Hospital (No. 616). Informed consent to use the data-use agreement including surgical video was obtained from all patients before surgery.

Statistical analysis

Quantitative variables are presented as medians [± standard deviation (SD)] or ranges where appropriate. Continuous variables were compared using the Mann-Whitney U test where appropriate. The Kaplan-Meier method was used to visualize PFS and OS of segmentectomy group (SG) and lobectomy group (LG). All statistical analyses were performed with the software SPSS version 17 for Windows (IBM Corp, Armonk, NY, USA). P values of <0.05 were considered to indicate significance for all parameters.

Results

Preoperative data and resected lobe of lung

From 2013 to 2019, we performed 152 lobectomies and 33 segmentectomies by U-VATS for clinical stage I lung cancer. The preoperative patient’s characteristics are summarized in Table 1. As shown in Table 1, in LG and SG, age, sex, tumor size, forced expiratory volume 1.0 s (Fev 1.0), histology and fissure statement were indicated.

Postoperative data

The mean postoperative wound length in both groups was 4.2 cm. Distribution of lobectomies in both groups is shown in Figure 1. The most of the lobectomies in LG was right upper (RU) lobectomies and S6 segmentectomy was the most in SG. The postoperative outcomes are shown in Table 2. The data of LG are shown as follows. The median operative time was 145±19 min, and the median operative blood loss was 72±11 mL. The mean number of dissected LNs was 17±3. The mean duration of the drainage duration and postoperative hospital stay and were 1.9±0.8 and 7.8±1.4, respectively. In SG, the median operative time was 114±17 min, and the median operative blood loss was 52±9 mL. The mean number of dissected LNs was 14±4. The mean duration of the drainage duration and postoperative hospital stay and were 2.1±0.7 and 6.8±1.1, respectively. With regard to the operation time, blood loss, the number of dissected LNs, drainage duration, hospital stays, conversion rate to thoracotomy, incidence of postoperative complications including 7 prolonged air leakages lasting more than 5 days, 3 atelectasis requiring bronchoscopic suction after operation, 2 empyema requiring prolonged drainage and 2 wound infection requiring drainage. No mortality was recorded in both groups. The average of NRS on postoperative day 30 was 2.1 in LG and 2.4 in SG. According to Kaplan-Meier analysis, the 5-year OS rate and the 5-year PFS rate was 80.1% and 78.5% in LG (Figure 2 A,B) and was 100% and 94.1% (Figure 3) in SG.

Figure 1 Distribution of segmentectomy and lobectomy in U-VATS. RU, right upper; RM, right middle; RL, right lower; LU, left upper; LL, left lower; RUM, right upper and middle; RML, right middle and lower.

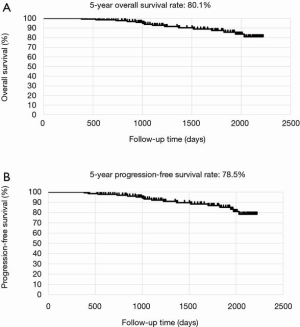

Figure 2 Kaplan-Meier analysis of OS and PFS after U-VATS lobectomy (n=152). The 5-year OS rate (A) and the 5-year PFS rate (B) in LG was 80.1% and 78.5%. LG, lobectomy group; U-VATS, uniportal video-assisted thoracic surgery; OS, overall survival; PFS, progression-free survival.

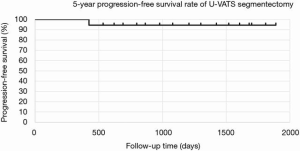

Figure 3 Kaplan-Meier analysis of PFS after U-VATS segmentectomy (n=33). The 5-year PFS rate in SG was 94.1%. SG, segmentectomy group; U-VATS, uniportal video-assisted thoracic surgery; PFS, progression-free survival.

Discussion

The recent consensus report from the Uniportal VATS Interest Group (UVIG) of the European Society of Thoracic Surgeons (ESTS) describes the procedures of U-VATS for lobectomy (6). The report was generated based on questionnaires from 31 thoracic surgeons in 18 countries. According to the report, U-VATS was typically performed with <4 cm incision on the anterior axillary or middle-anterior axillary line, with a surgical assistant standing on the same side as the primary surgeon. In terms of the indications for U-VATS, 65% of the surgeons considered T1 and T2b stages to be appropriate for U-VATS and only 7% of them considered N0 to be a contraindication for U-VATS. Furthermore, only 3% of them considered that U-VATS should be contraindicated for patients at high risk of adhesion such as those with a history of pleurisy. Future studies on U-VATS should provide additional insights as to the characteristics of U-VATS. M-VATS is difficult to characterize since the specific procedures of M-VATS, such as the position and number of trocars, often vary across different institutions. On the other hand, the minimally invasive nature of U-VATS can be easily evaluated since there is only one incision made to the chest wall, thus facilitating the standardization of the procedure.

We have already performed over 200 cases of U-VATS for anatomical lung resections. Based on our experience, U-VATS is technically more suited than M-VATS for the resection of well-lobulated lungs. The technical procedures involved in U-VATS are more intuitive than M-VATS. Although there is some interreference with surgical instruments, procedural movements during U-VATS are similar to those performed during thoracotomy. In addition, some studies suggest that U-VATS may shorten the duration of RU lobectomies (7). Actually, in our study, there was no significant difference in regard with the operative outcomes of U-VATS anatomical lung resection. The conversion rates to thoracotomy were also within the permissible range. Especially as for converting U-VTAS lobectomy, we reviewed based on three reports including our data (2,8,9).

Notably, U-VATS is associated with a low risk of post-thoracotomy pain syndrome that can occur in some patients and typically lasts for over 2 months. We previously performed a retrospective study and demonstrated that the rate of post-thoracotomy pain syndrome was lower in patients who underwent U-VATS compared to those who underwent M-VATS (10). Acute pain is often caused by the presence of a drain in the surgical site, and typically resolves after the removal of the drain. Patients with narrower intercostal spaces tend to be at a higher risk of post-thoracotomy pain syndrome, and may require conversion to the dual portal procedure to avoid contact between surgical instruments and the intercostal nerves.

Currently, U-VATS is most commonly performed in China. In contrast to RATS, U-VATS can be performed within a shorter period of time, allowing to fit in 3–4 surgical cases for lung cancer in a day. Given its convenience, U-VATS is likely more optimal in terms of health care efficiency for early-stage cancer. RATS is likely more suited for cases with a narrow surgical field that require superior motor skills. In thoracic surgery, these cases may include angioplasty, bronchoplasty, and LN dissection. In fact, a study demonstrated that RATS had a superior propensity score than U-VATS in terms of the number of LNs dissected (11). We anticipate that an increasing number of workshops for U-VATS will be held in Japan, and consequently, U-VATS will become more common in institutions that do not have or have the capacity to use surgical robots.

In this report, clinical data and prognostic evaluation are originated from single center and the same surgeon operated all patients for approximately 6 years. In our experience, compared to M-VATS, U-VATS has some disadvantages in terms of surgical quality in present, however if surgeons blush up their techniques much more, this procedures will be refined and common in thoracic surgeons considering the history that spread M-VATS over the world previously.
