Endoscopic treatment of Zenker’s Diverticulum—the modified transoral approach
Original Article: Otorhinolaryngology

Endoscopic treatment of Zenker’s Diverticulum—the modified transoral approach

Attapon Junlapan1,2, Thanapoom Boonipat3, C. Kwang Sung1, Edward J. Damrose1

1Department of Otolaryngology-Head and Neck Surgery, Stanford University School of Medicine, Stanford, California, USA; 2Department of Otolaryngology-Head and Neck Surgery, Faculty of Medicine, Naresuan University, Phitsanulok, Thailand; 3Department of Plastic Surgery, Mayo Clinic School of Medicine, Rochester, Minnesota, USA

Contributions: (I) Conception and design: A Junlapan, EJ Damrose; (II) Administrative support: T Boonipat; (III) Provision of study materials or patients: EJ Damrose, CK Sung; (IV) Collection and assembly of data: A Junlapan, CK Sung, EJ Damrose; (V) Data analysis and interpretation: A Junlapan, CK Sung, EJ Damrose; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

Correspondence to: Edward J. Damrose, MD. Department of Otolaryngology-Head and Neck Surgery, Stanford University School of Medicine, 801 Welch Rd, Stanford, CA 94305, USA. Email: edamrose@stanford.edu.

Background: Endoscopic stapling of Zenker’s diverticulum is associated with a lower complication rate than open resection, but has been associated with a higher recurrence rate, likely owing to the incomplete resection of the cricopharyngeus muscle and preservation of a remnant diverticulum. Repeat stapling for recurrence is often considered, but may not effective at palliating symptoms. Open resection of Zenker’s diverticulum is associated with the highest cure rates, but also associated with higher complication rates, increased length of hospital stay, and increased cost. Transoral resection of the diverticulum (TORD) has been reported, but no studies have evaluated long term outcomes and efficacy beyond this initial report. In 2016, we developed a modified version of the technique (MTORD) which allows complete resection of the cricopharyngeal muscle and diverticulum, and which has proven safe and efficacious in our institution. It has been used to treat patients primarily and in patients with recurrence of symptoms following endoscopic stapling.

Methods: Preoperative evaluation includes fiberoptic laryngoscopy, esophagram and/or modified barium swallowing study, and subjective eating assessment using the Eating Assessment Tool (EAT 10). The technique is performed endoscopically. A mucosal incision overlaying the cricopharyngeal muscle is created, through which the cricopharyngeus muscle is widely excised. The apex of the diverticulum is mobilized and advanced, and the redundant mucosa excised. An interrupted manual suture closure technique is applied to close the mucosa primarily.

Results: Eighteen patients have undergone surgery to date. There have been no major complications. Postoperative esophagram can confirm complete sack excision. EAT 10 scores normalized in 98% of patients.

Conclusions: MTORD is a safe and effective option for the endoscopic resection of Zenker’s diverticuli. It can be used as primary treatment as well as salvage treatment in patients with recurrent symptoms following endoscopic stapling.

Keywords: Endoscopy; humans; dysphagia; Zenker diverticulum

Received: 30 October 2019; Accepted: 14 January 2020; Published: 05 October 2020.

doi: 10.21037/jovs.2020.03.05

Video 1 Transoral excision of Zenker’s diverticulum.


Zenker’s diverticulum is a herniation of hypopharyngeal mucosa between the cricopharyngeus and inferior constrictor muscles. It is an uncommon but surgically treatable cause of dysphagia, and has a predilection for males over 70 years of age (1). Head and neck examination is usually unremarkable. In-office endoscopy may show increased pooling in the left pyriform sinus (2). Preoperative evaluation relies primarily on barium esophagography to confirm the diagnosis which reveals a pharyngeal pouch filling with contrast medium posterior to the cricopharyngeus muscle bar and the esophagus. Open surgical excision and endoscopic stapling are commonly employed to alleviate symptoms. In 2010, transoral laser—assisted partial myectomy of the cricopharyngeus muscle was described to improve symptom relief and decrease symptom recurrence (3). Also in 2010, Mortensen et al. detailed the technique of transoral resection of diverticula (TORD), wherein the sack itself is excised, not simply divided as in the classic stapler-assisted endoscopic approach (4). The modified transoral resection of diverticula (MTORD) is an endoscopic approach presented in this manuscript wherein a diverticulectomy is performed in conjunction with partial cricopharyngeal myectomy. MTORD affords a purely endoscopic approach for diverticulectomy, and avoids the morbidity of a transcervical approach. This paper describes the technique.


The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). This study was approved by the Stanford University Institutional Review Board (IRB number: 42705) and written informed consent was obtained from all patients. Patients are evaluated for unfavorable physical factors to diverticuloscope placement such as Mallampati class 3 or 4, class 2 occlusion, trismus, unstable dentition, and limited neck extension (5). Patients with these findings should be counseled pre-operatively for the possibility of conversion to an open transcervical approach in case an adequate endoscopic view of the diverticulum cannot be achieved. Additionally, patients should be counselled of the risk of conversion to the open approach if the procedure is complicated by pharyngeal perforation.

The patient is placed in the supine position. General anesthesia is induced and preoperative antibiotic prophylaxis is given, usually cefazolin. The patient is endotracheally intubated with a wire reinforced endotracheal tube. A shoulder roll is placed. The upper dentition is protected with a rubber dental guard. The procedure usually begins with esophagoscopy to exclude concomitant unexpected esophageal pathology. Once this is excluded, the Weerda distending diverticuloscope (Karl Storz, Tuttlingen, Germany) is then placed into position and suspended from a Dedo- Mayo stand to achieve clear visualization of the esophageal lumen, diverticulum and the cricopharyngeal bar (Figure 1). An operating microscope with attached micromanipulator is placed. CO2 laser or endoscopic electrocautery can be used. When a laser is chosen, we prefer to use a continuous power setting at 8 watts. The patient’s eyes are protected with wet gauze pads and the face is covered with wet towels. A horizontal incision is made in the mucosa to expose the cricopharyngeal bar (Figure 2). Submucosal flaps are elevated anteriorly, inferiorly and posteriorly to the cricopharyngeal bar (Figure 3). The full thickness of muscle is grasped, divided fully bilaterally and excised to the level of the distal connective tissue (Figure 4). Lateral incision are made parallel to the long axis of the diverticulum sack. It is then advanced inferiorly to gauge the degree of mucosa required for resection. Enough mucosa should be removed to obliterate the diverticular lumen but also to allow a tension free mucosal closure. The sack is then advanced inferiorly into the esophageal inlet, and the desired amount of tissue excised (Figure 5). Frequently, small blood vessels are encountered during the myectomy or diverticulectomy that may require electrocautery for hemostasis. A tension-free primary closure is performed in a horizontal fashion using interrupted 3-0 vicryl suture on an RB-1 needle (Ethicon, Inc.; Somerville, NJ) (Figure 6). Knots are tied externally and advanced with a knot pusher or triangular forceps. The closure should be performed in a tension free manner (Figure 7). A nasogastric feeding tube is then placed under direct visualization (Video 1).

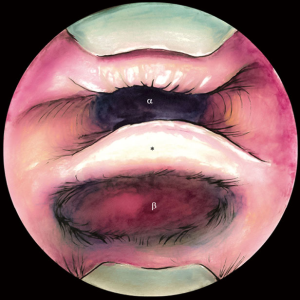

Figure 1 Endoscopic view of Zenker’s diverticulum (β) and esophageal opening (α), demonstrating optimal visualization of cricopharyngeal bar (*) and pouch.
Figure 2 Horizontal mucosal incision is made across the cricopharyngeal bar.

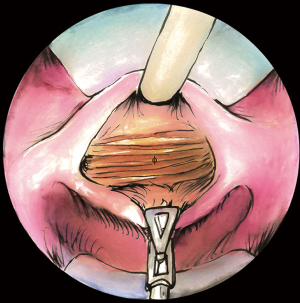

Figure 3 Submucosal flaps are elevated to expose the cricopharyngeus muscle (ϕ).

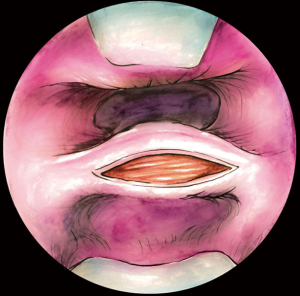

Figure 4 Segmental muscle resection is performed using electrocautery or laser.

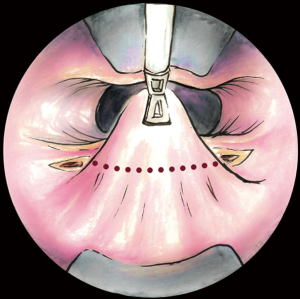

Figure 5 The diverticulum is advanced and excised. The dotted line represents the intended excision line.

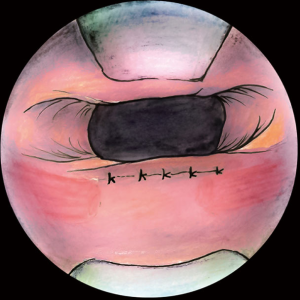

Figure 6 Mucosa is repaired in a tension-free interrupted horizontal fashion.

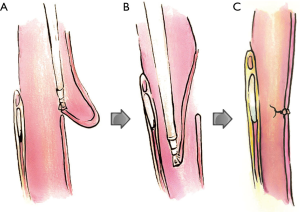

Figure 7 Sagittal views show the Zenker’s diverticulum is grasped (A) and pulled into the esophageal lumen (B) which the excessive redundant mucosa is then excised and primary mucosal closure is performed (C).

Patients are observed for 48 hours postop. If there is no clinical indication of leakage (i.e., subcutaneous emphysema), patients are started on a liquid diet, which is advanced to a regular diet by postoperative day 7. A broad-spectrum antibiotic, delayed oral diet and continued tube feeding should be considered if there is clinical suspicion for a leak.


Eighteen patients were treated in this fashion. Postoperative esophagram can confirm complete sack excision. To date no surgical complications have been observed with MTORD but theoretically include dental trauma, subcutaneous emphysema, mediastinitis, hypopharyngeal injury, bleeding, pharyngoesophageal stenosis, fistula, need for reoperation and persistent symptoms of dysphagia (6,7). We believe that mucosal closure tends to lower the incidence of these complications, and is an important part of the procedure (8,9).


The mainstay of treatment of Zenker’s diverticulum has evolved from the conventional open, transcervical approach to the more popular transoral, endoscopic techniques with either rigid or flexible scopes due to the lower complication rates, faster recovery, shorter operative time and shorter hospital stay (10,11).

Endoscopic treatment of Zenker’s diverticula is conventionally performed by making a vertical myotomy through the cricopharyngeus muscle bar and dividing the common wall shared by the esophagus and the anterior diverticular sack. However, these techniques report higher stricture and recurrence rates than the cricopharyngeal myectomy technique (3). We favor this approach combined with a modification of the TORD procedure described by Mortensen (3,4). In this modified technique, a horizontal mucosal incision facilitates wider exposure of the cricopharyngeus muscle resection and facilitates the mucosal closure. Primary mucosal closure may mitigate pharyngeal leakage, subcutaneous emphysema and infection while facilitating pouch excision (8).

Inpatient observation and delayed resumption of oral alimentation are considered disadvantages of the endoscopic laser diverticulotomy when compared to the endoscopic stapling approach, which postoperatively allows immediate oral diet with no requirement of nasogastric feeding tube placement. However, Mortensen et al. reported resuming a liquid diet on the morning of the first post-operative day after transoral crycopharyngeal myotomy or TORD without any complications. Several patients in our experience have also started liquid intake after MTORD on post-operative day one without any complications. In addition, the endoscopic laser approach offers other advantages including complete pouch excision, lower complication rate compared to transcervical excision, greater improvement in dysphagia and regurgitation, and a lower rate of recurrence of symptoms and need for revision surgery (6,12).


MTORD is a safe and effective endoscopic treatment of Zenker’s diverticulum, affording diverticulectomy and myomectomy. Complication rates are comparable to stapling, and lower than conventional external excision. However, long-term recurrence rates need to be evaluated.
