Combined right thoracotomy and left video-assisted thoracoscopic surgery for left tracheal sleeve pneumonectomy: a case report

Introduction

Left tracheal sleeve pneumonectomy (LTSP) is one of the most challenging thoracic surgical procedures. Traditional operative approaches include left thoracotomy and median sternotomy; each of them, however, has its downsides: access to the carina from the left side, in fact, is limited by the presence of the aortic arch, while median sternotomy, with opening of the transpericardial route, is a feasible approach, although the surgical field is narrowed by the presence of the aorta, superior vena cava and right pulmonary artery, and access to the left pleural cavity is suboptimal (1).

It is intuitive that a bilateral approach offers the most suitable conditions to perform the left pneumonectomy on one side and the reimplantation of the right main bronchus on the other side; however, the morbidity associated with a double thoracotomy or a clamshell incision is considerable. Therefore, since the advent of thoracoscopy, some authors have hypothesized that a combined thoracoscopic and open approach would have been convenient for performing LTSP (2). Nevertheless, given the rarity of this procedure, such a strategy has been only anecdotally reported (3,4). In the present paper, we document the case of aLTSP performed through a combined thoracoscopic and open approach, and we provide a review of all similar published reports.

We present the following case in accordance with the CARE reporting checklist (available at https://jovs.amegroups.com/article/view/10.21037/jovs-2020-10/rc).

Case presentation

A 38-year-old man, nonsmoker, with persistent cough and dyspnea, was found with an endoluminal lesion of the left mainstem bronchus with subcarinal extension, measuring 4.5 cm in its largest diameter at CT scan (Figure 1). The patient subsequently underwent PET-CT scan, which revealed a pathologic uptake limited to the tumor (SUV_max 3). Rigid bronchoscopy documented a nearly total obstruction of the left main bronchial orifice by the mass, which was successfully cored out during the same procedure. The lesion originated 1 cm proximally to the carina and extended down to the division between upper and lower lobe bronchi (Figure 1B). Pathology report concluded for adenoid cystic carcinoma.

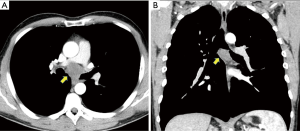

Figure 1 Computed tomography findings. (A) Axial and (B) Coronal view. Arrows indicate the tumor.

Given the lack of distant metastases and the good clinical conditions of the patient, decision was made for surgery. Unfortunately, the left mainstem bronchus was involved for almost its entire length, which precluded the possibility of sparing the left lung; additionally, due to the extension of the mass into the subcarinal region, a difficult dissection of the right main bronchus and of the right main branch of the pulmonary artery was anticipated (Figure 1A). Therefore, the planned surgical procedure consisted of aLTSP through bilateral sequential right thoracotomy and left thoracoscopy (Video 1).

Under general anesthesia and independent lung ventilation, provided by a left double-lumen endotracheal tube, the patient was positioned in left lateral decubitus and a right thoracotomy was performed into the 4th intercostal space. Intraoperatively, the posterior aspect of the carina was exposed, and the mass was carefully dissected from surrounding structures, including right main bronchus, right main pulmonary artery, azygos vein and esophagus. Afterwards, the distal trachea and both main bronchi were divided in tumor-free zones to allow excision of the tumor and cross-field intubation of the left main bronchus was performed (Figure 2A,B). After that frozen section examination confirmed the negativity of resection margins, the right main bronchus was reimplanted into the distal trachea by means of a termino-terminal anastomosis with interrupted 3-0 Vicryl sutures (Figure 2C), while the patient was still ventilated through the left main bronchus. On completion of the anastomosis, a standard single-lumen endotracheal tube was positioned above the suture line, and a flap of thymic tissue was wrapped around the anastomosis. Finally, the left bronchial stump was sutured and plunged down into the mediastinum, and the right pleural cavity was closed and drained by a single chest tube.

Figure 2 Intraoperative view. (A) Right main bronchus is divided; the left-sided double-lumen tube is visible through the tracheal lumen. (B) Distal trachea and left main bronchus are divided; cross-field intubation into the left main bronchus is established. (C) After resection of the tumor a termino-terminal anastomosis between distal trachea and right main bronchus is performed. Ventilation is maintained through left main bronchial intubation (1: tumor, 2: right main bronchus, 3: trachea, 4: left main bronchus).

For the second step of the operation, the patient was repositioned in a right lateral decubitus and a single 4-cm thoracoscopic incision on the anterior axillary line was performed (Figure 3A); this allowed to safely complete the left pneumonectomy and a systematic left hilar and mediastinal lymphadenectomy. Total operative time was 305 minutes, including 210 minutes for the right side and 95 minutes for the left side. Total blood loss was 200 cc and the patient were extubated in the operating room. The postoperative course was uneventful; intensive care unit stay was 2 days, while total postoperative hospital stay was 14 days. Final pathologic examination confirmed adenoid cystic carcinoma pT4(inv)N0, with free resection margins. Scheduled bronchoscopic examinations were performed on postoperative day 1, day 7, and one month thereafter, documenting a regular anastomosis (Figure 3B). At the time of writing this report, the patient is alive and disease-free after 13 months from his surgery.

Figure 3 Postoperative results. (A) Skin incision for left VATS; (B) bronchoscopy at postoperative day 1.

Written informed consent was obtained from the patient for publication of this study and any accompanying images. A copy of the written consent is available for review by the Editor-in-Chief of this journal. All procedures performed in this study were in accordance with the Helsinki Declaration (as revised in 2013).

Discussion

The choice of the surgical approach for LTSP is of critical importance. The convenience of a bilateral approach, in fact, must be weighed against the need for a reduced surgical invasiveness, due to the known high rates of morbidity and mortality that characterize this procedure (5).

Probably, in uncomplicated cases, median sternotomy is the access of choice, in that it provides an adequate surgical field and is associated with acceptable postoperative morbidity. However, in this particular patient, the use of a bilateral approach was justified by extension of the tumor along the medial and posterior aspects of the right main bronchus and the posterior aspect of the pulmonary artery (Figure 1), and the consequent need for an adequate exposure for dissection of these structures.

Other authors have described the use of VATS in combination with thoracotomy to perform LTSP. Table 1 provides a synopsis with the main characteristics of all published cases.

In most reports, the patient underwent some form of endoscopic intervention prior to surgery. Unblocking of the left main bronchus, by either laser-assisted ablation, mechanical coring out or temporary stent placement (4), greatly facilitates airway management during the operation; in the present case, in fact, both the left-sided double lumen endotracheal intubation and the left cross-field intubation of the left main bronchus were used at different phases of the procedure. This highlights the importance of rigid endoscopy in the management of tumors involving the carina.

In the other reported cases, the combined approach consisted most often of a right thoracotomy first, for carinal resection and reimplantation of the right main bronchus, and a subsequent left VATS, for completion of the pneumonectomy. The only exception is the study by Fujino and coworkers, who chose to start the procedure with the left thoracoscopy and pneumonectomy first, since an evaluation of tumor extension into the aortopulmonary window was deemed necessary (7).

For the left VATS phase, there is a trend towards a reduced number of thoracoscopic ports in more recent reports, which is explainable by the wider adoption and the growing confidence in both VATS pneumonectomy and uniportal surgery worldwide (9). Uniportal pneumonectomy, in the present case, was completed without added difficulties in 95 minutes. During this second phase, the newly performed anastomosis underwent the mechanical stress of positive pressure ventilation, which was supplied through a standard single-lumen tube; thus, keeping operative time as short as possible was fundamental.

Most investigators have relied upon cross-field intubation during carinal resection and anastomosis, while Yen et al. have reported the use of high frequency jet ventilation (HFJV) for this purpose (3). We believe that both options are feasible. In fact, despite early concerns that the use of HFJV in patients undergoing TSP could result in an increased rate of acute respiratory distress syndrome (2), later case-series have not confirmed these findings (10,11). As for the choice of the lung to ventilate, intubation of the left main bronchus allows for an undisturbed procedure of resection and anastomosis, without intermittent apnea; however, this option depends on the possibility of preoperative endoscopic debulking of the airway and on the functional condition of the affected left lung.

Although the patients’ number is low and there is potential for publication bias, overall, the postoperative outcomes of the reported cases seem favorable. Only one patient died in the postoperative period (6), due to a presumed respiratory tract bleeding, while two patients experienced complications that resulted in a prolonged hospital stay (3,7).

Conclusions

To conclude, the growing number of reports suggests that the bilateral combined open and thoracoscopic approach herein presented is feasible, and that it should be considered as an alternative to median sternotomy or to other traditional approaches for selected, more complicated cases of LTSP.
