Uniportal subxiphoid video assisted thoracoscopy surgery approach for bilateral lesions

Introduction

Advent of minimal invasive technique has revolutionized thoracic surgery, over the last 2 decades. Video assisted thoracoscopy surgery (VATS) made thoracic surgery less morbid and reduced the overall treatment duration and complications with similar oncological outcomes (1,2).

On the other side, the increased use of screening CT scan in high risk population made it feasible to detect lesions at an early stage and reduce related mortality (3). However, detection of additional multiple lung pathologies have also increased with the use of high definition CT scan. Some of these lesions are difficult to be characterized by imaging alone and are also not easily amenable for image guided biopsy. Management of such multiple lung lesions, especially those detected in lung cancer pose a great challenge in staging and management. Current guidelines for management of lung cancer, including NCCN and IASLC guidelines have not addressed this adequately and it is yet being debated, whether to consider them as metastasis from the primary lung lesion or as synchronous multiple primary lung lesions. A few criteria have been described in literature for classification of primary multiple lung cancers (4,5), however these were published at a time when the CT scan was less developed. Recent evidence suggests that aggressive surgical resection yields the best possible outcomes in select such patients (6,7). Minimally invasive surgery with its proven advantage over conventional thoracotomy can be increasingly used when bilateral simultaneous surgical resection is required.

Uniportal VATS (U-VATS) for management of lung cancer have been found to be safe and oncologically sound (8) however the Uniportal Subxiphoid approach offers the extra benefit of providing a bilateral access using a single incision and avoiding intercostal nerve injury (9). Bilateral lung surgery using Sub Xiphoid U-VATS has-been described in literature (10-12).

In this article we describe our experience in uniportal subxiphoid synchronous pulmonary resection for bilateral lung lesions, performed at our tertiary care centre. We present the following article in accordance with the STROBE reporting checklist (available at https://jovs.amegroups.com/article/view/10.21037/jovs-2020-14/rc).

Methods

We performed a retrospective analysis, of prospectively maintained database of patient undergoing surgery at our tertiary care hospital, between October 2014 and December 2017. Medical records of patients who underwent bilateral simultaneous subxiphoid pulmonary resection were analyzed after obtaining permission from the institute ethics committee. All patients, as per routine protocol had been evaluated with high resolution contrast CT of the chest and PET CT (whenever feasible). The lesions identified were classified into pure ground glass opacities, mixed ground glass lesion, solid nodules or mass lesion. Wherever possible image-guided or bronchoscopy guided biopsy of the lesion was performed and in patients where the same was not possible intraoperative fast frozen histology examination was done to confirm the presence of malignancy. Patients having multiple bilateral lung lesions, with no significant lymph nodal involvement and no evidence of metastatic disease elsewhere were considered for surgery after pulmonary function and cardiac function work up and fitness. Selection criteria for simultaneous procedure included forced expiratory volume in 1 s (percentage of predicted) (FEV1%) was more than 60% and predicted postoperative FEV1 was more than 1.0 liter, with no significant cardiac co morbid conditions.

Selection of surgical procedure—depended on the preoperative imaging and varied from wedge resection through anatomical segmental resection to lobectomy. We did not undertake any pneumonectomy combined with contralateral lung resection in a single sitting.

Surgeries, performed by a single attending consultant, were taken up for this analysis. Patients’ demographic data¸ preoperative patients’ characteristics, intraoperative parameters and immediate postoperative outcomes were obtained from the data base and analyzed using SPSS 17.0.

The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by institutional review board of Shanghai Pulmonary Hospital (Approval number: K17-160). Individual Consent was waived off as this was a retrospective analysis and data was accessed after masking the patient’s identity.

Surgical technique

All patients were given general anesthesia using a double lumen endotracheal tube for obtaining single lung ventilation. The patients were placed in supine position, aseptic methods used for painting and draping was done. A 4 cm horizontal skin incision (vertical if the costal margins were close) is given in the subxiphoid region (Figure 1). Subcutaneous tissue and rectus abdominis muscle were separated by blunt dissection, staying extra peritoneal through-out the course. Sub-costal tunnel was created and mediastinal pleura were opened up in the region of cardiophrenic angle. Mediastinal fat was dissected out and one side pleural cavity was entered. A wound protector was placed at the site. Using a 10 mm 30-degree thoracoscope, pleural cavity was evaluated. Surgery was performed using specialized uniportal VATS instruments (Figure 2). The hilar structures were defined and as per the surgery, required hilar vasculature was taken down with articulating staplers (Covidien, Mansfield, USA or Ethicon Endo- Surgery INC, USA). Specimen was delivered using a specimen bag (or locally engineered glove bag) (Figure 3) (Videos 1,2). Post intended resection; the lung was re-inflated, to check for air leak. The contralateral lung was deflated and surgical procedure on the contralateral side was performed. In patient with a diagnosed primary malignancy of lung or in those patients were the intraoperative frozen was suspicious of invasive malignancy, formal lymph nodal dissection was performed. After completion of procedure, chest drain was placed through the same single incision (Figure 4).

Figure 1 Operative positioning. (A) Positioning of patient with incision marking; (B) intraoperative position of surgeon and assistant and the visual module.

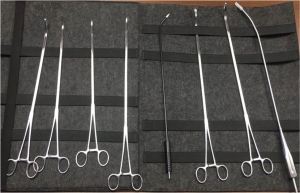

Figure 2 Instruments for subxiphoid uniportal video assisted thoracoscopy surgery (VATS).

Figure 3 Intraoperative images. (A,B) Dissection of pulmonary vessels; (C) nodal dissection; (D) specimen retrieval in specimen bag.

Figure 4 Postoperative wound of subcostal uniportal video assisted thoracoscopy surgery (VATS).

Results

Demography

We identified a total of 37 cases, where bilateral pulmonary lesions were detected on preoperative evaluation and subxiphoid bilateral simultaneous pulmonary resection was done. The mean age of our patients was 56.76±10.93 years (ranging from 27 to 74 years). Most common age group was 60 to 70 years (41%), followed by 50 to 60 years (25.6%). A smoking history was found only in a small percentage accounting for 18.9%. Majority of the patients were females (62.2%). The mean preoperative body mass index (BMI) measurement was 22.4±3.05 kg/m², ranging from 16.6 to 27.3 kg/m². Majority of the patients were in the BMI range of 20–25 kg/m² (51.4%). In the preoperative pulmonary function test, the mean FEV1% was 92.187±17.47. The lowest value was 69.5% (Table 1).

Intra operative data

Surgical procedures ranged from wedge resection to anatomical pulmonary resections (combinations of techniques were used) based on the preoperative evaluation and after the multidisciplinary board discussion and concurrence. All the 37 surgeries included in this analysis were done as single staged procedure. Bilateral lobectomy was performed in 6 patients, while lobectomy was combined with wedge resection in 2 patients and with anatomical segmentectomy in 14 patients. A bilateral segmental resection was performed in 6 patients, in 3 patients segmental resection was combined with wedge resection (Table 2).

The mean duration of surgery was 204.8±71.7 minutes. The mean operative blood loss was 115.95±53.98 mL. There were 3 conversions in the surgery group (additional one intercostals port -1, thoracotomy -2). All patients were extubated on table and kept in postoperative recovery room.

Postoperative outcomes

The mean duration of postoperative stay in the hospital was 6.78±6.8 days (ranging from 2 to 41 days). Postoperative complications were seen in 7 patients. Three were Clavien-Dindo grade 3, one patient developed cerebrovascular infarction with residual paralysis, two patient developed pulmonary infection needing ICU readmission and mechanical ventilation. Two patients with Clavien-Dindo grade 2 complications—prolonged ICD drainage with collapse consolidation of lung, requiring long hospital stay and supplemental oxygen. Two patients had prolonged air leak requiring longer duration of chest drain placement. There was no postoperative 30-day mortality.

The postoperative stay in patients undergoing single stage bilateral lobectomy was 15.5 (±14.6) days compared 5.10 (±1.77) in other patients. On independent sample T test, this was found to be statistically significant (P<0.01) with a 95% CI (5.2–15.6). The postoperative complications were also found to be more in patients undergoing bilateral lobectomy compared to others, showing statistical significance (Fisher’s exact test P=0.007).

Histopathology

Invasive adenocarcinoma was seen in 51.3% of patients, in at least in one specimen. Bilateral invasive adenocarcinoma was seen in 13.5%. Invasive adenocarcinoma was associated with minimally invasive adenocarcinoma (MIA) of the other side in 5.4%, adenocarcinoma in situ in 18.9% and benign pathology in 13.5%. Bilateral adenocarcinoma in situ was found in 13.5% and associated with MIA in 5.4%, with benign pathology in 2.7%. One patient was operated for metastasectomy and bilateral tumors were metastatic deposits. Three patients underwent surgery for only bullectomy and in 2 other patients bilateral lesions were benign. (Table 3). The mean number of lymph nodes dissected was 10.33 (±2.7) and the median number of nodal stations sampled was 4.

Discussion

Multiple primary lung cancer accounts for 0.8–8.4% of lung cancers among the Asian population (13,14). Increased use of high definition CT images and PET scan has resulted in increased detection of additional lung lesions in patients with lung cancer, however little has been described about the management of imaging detected lesion in such patients. The updates from the Fleischner Society recommendation in patients with multiple lung nodules with a dominant nodule, suggest that the dominant nodule determines the management. For the associated GGO, surgical management is recommended (15). In another new change in the management of lung cancer, the new WHO classification reclassifies the previously described bronchoalveolar carcinoma into further subtypes: adenocarcinoma in situ, MIA and invasive adenocarcinoma with the former two having near 100% survival after surgical resection (16,17).

Uniportal VATS resection is being used more frequently in the management of lung cancers, with proven procedural safety and feasibility in patients with lung cancer (8). The advantage of uniportal over conventional multiportal thoracoscopy is the avoidance of injury to intercostal nerve at multiple places and resultant increased pain and paresthesia. Subxiphoid Uniportal VATS scores over the intercostals uniportal VATS in totally avoiding intercostal nerve injury, approach of bilateral lung lesions using a single incision. There have been a few reports of uniportal subxiphoid approach for bilateral lung lesions (10-12).

Wang et al. described the data on subxiphoid uniportal VATS in bilateral lung lesion in 11 patients. In their series, the mean age of the population involved was 42.6 years and 20–30 years and 40–50 years were the most common age group (27.3% respectively) (11). In the series by Cai et al. comparing uniportal intercostal Uniportal VATS bilateral lung resection with sub Xiphoid uniportal resection (10), the mean age was 53.5±13.5 years. In our study, the mean age was 56.76±10.9 years and most common age group was 60–70 years (41.0 years). Majority of population in the Wang et al. series were men (54.5%) while in Cai et al. and in our results majority were women (57.1% and 62.2% respectively). Most of the patients in our study were non obese patients (mean BMI 22.24) similar to Cai et al. (10) and the preoperative FEV1% was also comparable to Cai et al. study (92.19 vs. 90.5 respectively).

Most of the procedures in Wang et al. series were bilateral non anatomical lung resections (wedge resection) with only 3 patients receiving anatomical lung resection that too on one side only. Cai et al. bilateral wedge resection in 32.1%, lobectomy with wedge resection in 28.6% while bilateral anatomical lung resection (lobectomy +segmentectomy/bilateral segmentectomy) were described in only 28.5%. In our series majority of surgeries (70.2%) were bilateral anatomical lung resection (bilateral lobectomy: 16.2%; bilateral segmentectomy: 16.2%; lobectomy with segmentectomy: 37.8%). Our series is the first to describe the outcomes of bilateral lobectomy (in 6 cases). The mean operative time in our series was 204.8 minutes and the average amount of intraoperative blood loss was 115.9 mL, which was comparatively lower than Cai series (212.3 minutes and 190.9 mL respectively).

There were three conversions from uniportal subxiphoid in our series, similar to Cai et al. However, we did not experience any re exploration. Postoperative stay was comparable at 6.78 vs. 6.4 days respectively (10). Postoperative complications were 18.9%, higher than in the other series (10,11). Further analysis of our study population, showed the complication rates to be more common among bilateral lobectomy compared to other bilateral resection group (statistically significant). This was similar to the observation in the Cai et al. series.

On Histopathological examination of the specimen, invasive carcinoma was detected in 51.3% population almost similar to the Cai et al. series (10), while it was lower in Yang et al. series (11). Invasive adenocarcinoma was the most common histology in our population, similar to other studies (10,11,18). Bilateral invasive carcinoma was found in 5 patients, while in 24.3% it was associated with MIA or Adenocarcinoma in situ. None of the patients with invasive tumours had nodal involvement. The median number of lymph node stationed sampled and nodes removed were compared to unilateral intercostal uniportal VATS (8). Highest stage of patient in our series as per the current AJCC 10th edition was T1 (40.5%) comparable to the literature (10,14). In this series, most of the patients with bilateral lung lesions had a coexisting preinvasive or microinvasive disease similar to Nakata et al. where well differentiated adenocarcinoma with bronchoalveolar pattern was the commonest observed subtype (39.7%) (14). This supports the fact that aggressive surgical intervention is the key for management of synchronous bilateral lung lesions in select patients (6,7,10,18).

Our study has a few short-comings, it was a retrospective analysis and long term follow up was not available to be included. The latter will help in survival analysis and help in better selection of surgery as modality for bilateral lung cancers. Also, a larger study with more number of patients will help in better understanding, however it may be difficult to perform one, given the lower incidence of bilateral lung tumours.

Conclusions

Aggressive surgical approach may be considered in patients with multiple synchronous pulmonary tumours, after proper patient selection. Bilateral synchronous anatomical lung resection is feasible and safe with minimal postoperative complications. With segmentectomy becoming more widely accepted for management of small tumours, bilateral segmental resection or segmental resection in combination with lobectomy, will not compromise the postoperative lung reserve, also address the tumour oncologically.

Acknowledgments

Funding: None.

Footnote

Provenance and Peer Review: This article was commissioned by the Guest Editor (Federico Rea) for the series “Alternative Surgical Approaches for Challenging Cases in Thoracic Surgery” published in Journal of Visualized Surgery. The article has undergone external peer review.

Reporting Checklist: The authors have completed the STROBE reporting checklist. Available at https://jovs.amegroups.com/article/view/10.21037/jovs-2020-14/rc

Data Sharing Statement: available at https://jovs.amegroups.com/article/view/10.21037/jovs-2020-14/dss

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://jovs.amegroups.com/article/view/10.21037/jovs-2020-14/coif). The series “Alternative Surgical Approaches for Challenging Cases in Thoracic Surgery” was commissioned by the editorial office without any funding or sponsorship. The authors have no other conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by institutional review board of Shanghai Pulmonary Hospital (Approval number: K17-160). Individual Consent was waived off as this was a retrospective analysis and data was accessed after masking the patient’s identity.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
