Anomalous mediastinal left lower lobe anterior segmental artery (A8) accidentally divided during left VATS upper lobectomy: a case report

Introduction

Bronchovascular anatomical variations can pose technical challenges during lobectomy and segmentectomy (1). Familiarity with these anatomical variations and careful identification during surgery can prevent accidental intraoperative injury or division. Pulmonary arterial vessel originating from the mediastinal aspect of the left main pulmonary artery is termed mediastinal type. Vessels arising distal to the truncus superior from the truncus intermedius in the fissure is the interlobar type. Vessels originating within the intralobar lung segment is the segmental or subsegmental types. Truncus superior have a mediastinal origin from the left main pulmonary artery and are the commonest mediastinal types (2). The lingular arterial supply may have a mediastinal origin where it is solely mediastinal in 18% and mixed mediastinal and interlobar in 12%. The segmental arterial supply (A8) is solely intralobar and mediastinal origin has not been reported previously. In this case report a rare anomalous mediastinal origin of a left lower lobe anterior segmental artery (A8) accidently divided during a left video-assisted thoracic surgery (VATS) upper lobectomy is described.

I present the following article in accordance with the CARE reporting checklist (available at https://jovs.amegroups.com/article/view/10.21037/jovs-20-139/rc).

Case presentation

Patient is a 69 years old male non-smoker with a past history of carcinoma of prostate. During routine positron emission tomography (PET) computed tomography (CT) surveillance scan for prostate cancer a solitary left upper lobe spiculated nodule suspicious for lung cancer was detected (Figure 1). He underwent a left VATS wedge excision of the nodule. Intraoperative frozen section analysis of the nodule confirmed it to be a non-small cell lung cancer. A completion left VATS upper lobectomy and systematic lymph node dissection was done at the same session. During the lobectomy the interlobar lingula A4 and A5 vessels were noted to be small. After division of the upper lobe truncus and interlobar arterial branches a mediastinal origin of a segmental artery was noted. Due to the mediastinal origin and the small interlobar A4+5 lingula branches it was deemed to be a mediastinal lingula artery and was stapled and divided. However during mobilisation of the left upper lobe bronchus it was noted that the divided mediastinal artery was actually supplying the anterior (S8) segment of lower lobe and not the lingula segment. The lobectomy was completed by dividing the upper lobe bronchus and major fissure with staplers. Primary anastomosis of the divided A8 vessels was then reconstructed by VATS. The proximal and distal ends were mobilised to ensure a tension free anastomosis. Proximal and distal control of the pulmonary vessels was obtained with vascular clamps. The proximal and distal stapled ends were divided and primary end to end anastomosis was done with two continuous 6-0 prolene sutures, starting first with the posterior vascular wall and then finishing with the anterior wall. After completion of the anastomosis the clamps were removed and the anastomosis was checked for patency and hemostasis. Air leak check was done followed by application of tissue glue (Video 1). Patient made an uneventful recovery and was discharged on post-operative day 2. Final histology was adenocarcinoma stage 1a (T1N0M0). A retrospective review of a CT coronary scan done 6 years previously did demonstrate the presence of this anomalous vessel (Video 2).

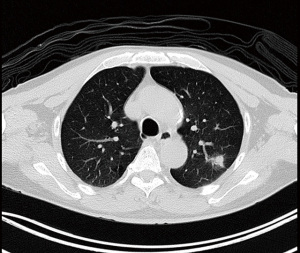

Figure 1 CT scan thorax showing left upper lobe lung cancer.

All procedures performed in this study were in accordance with the ethical standards of the institutional and/or national research committee(s) and with the Helsinki Declaration (as revised in 2013). Written informed consent was obtained from the patient for publication of this case report and accompanying images and videos. A copy of the written consent is available for review by the editorial office of this journal.

Discussion

Bronchovascular anatomical variations can pose technical challenges during lobectomy and especially segmentectomy where these structures are embedded deep in the lung parenchyma. Familiarity with these anatomical variations helps avoid intraoperative injury and accidental division (2-5).

Vascular structures of the lung include the pulmonary arteries, pulmonary veins, and bronchial arteries. Segmental pulmonary arteries parallel the bronchi. Unlike the segmental veins which run in the intersegmental plane between two adjacent segmental bronchi, the subsegmental veins run in the intra-segmental and interlobular septa parallel to the segmental and subsegmental pulmonary artery branches and bronchi. Though most common variations are due to venous drainage significant anatomic variations exist in the number and origin of anomalous pulmonary arterial supply to the lobes and segments (2-5).

Anatomic variations on the left lung are more common than on the right (3,4). Pulmonary arterial branches to the left upper lobe can vary from 2 to 7 and are divided into mediastinal, interlobar and segmental/subsegmental types. When the vessel originates from the mediastinal aspect of the left main pulmonary artery it is a mediastinal type. Vessels arising distal to the truncus superior from the truncus intermedius in the fissure is the Interlobar type. Vessels originating within the intralobar lung segment is the segmental/subsegmental types. Truncus superior is the commonest mediastinal type followed by lingula branch (A4+5). The lingula arterial supply is solely mediastinal in 18% and mixed mediastinal and interlobar in 12%. The segmental arterial supply (A8) is solely intralobar and mediastinal origin has not been reported previously (2).

Recognition of this aberrant origin during left VATS upper lobectomy is important as it could be mistaken for mediastinal lingula type and be injured or accidentally ligated. This is especially if the interlobar A4+5 is very small as was in this case. In retrospect what was thought to be the unusually large A1+2c posterior branch was probably a common trunk origin of A4 lingula branch with an adjacent smaller A1+2c branch (Figures 2,3). Such intraoperative complication can be avoided by detailed preoperative study for possible bronchovascular anatomical variations by simulated 3-dimensional multidetector contrast enhanced computer tomography (6,7). This should be supplemented further by meticulous intraoperative dissection and careful identification of mediastinal and interlobar vessels distally into the respective segments before ligation.

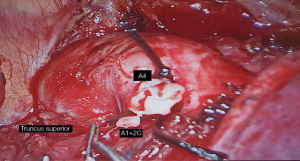

Figure 2 Intraoperative picture of A1+2c and A4a+b.

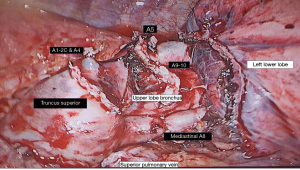

Figure 3 Intraoperative picture after left video assisted thoracoscopic upper lobectomy.

Conclusions

Though anomalous mediastinal origin of left lower lobe segmental arterial vessels is very rare as compared to lingula vessels it should always be verified intraoperatively as A4+5 or A8 by careful dissection to avoid inadvertent injury or ligation during left VATS upper lobectomy.
